MERCEDES-AMG TUNING ADELAIDE

In-house ECU and TCU calibration for the M133, M139, M177, M276 and M157 AMG engines, developed on our Dynotech AWD dyno. Every package below is priced privately for your car in the package builder.

ENGINE AND GEARBOX, TOGETHER

The M177 C63 and GLC63 are the AMGs we tune most, followed by the M133 A45 and CLA45, then the M157 E63 and CLS63. TCU, DCT and CPC calibration appears on most of our AMG tuning invoices, so the gearbox is calibrated with the engine.

Our own CADE-FLASH platform supports the MED17.7 (M177, M276) and MG1CS024 (M139, M256) ECUs and the 7G and 9G transmission controllers. Downpipes are the hardware we fit most: CADE RACE downpipes on the W205 C63S and CADE High-flow 200-cell catted downpipes on the GLC63S.

Mercedes-AMG C63 S M177 engine bay opened up during a turbo upgrade
An M177 C63 S during a turbo upgrade.

AMG PLATFORMS

Stage names, gains and fitted parts as listed in our package builder; tap a stage to price it privately.

A45 / CLA45 (W176, M133)

M133
  1. Stage 1ECU + TCU

    +40-50kW / +80-100Nm; ~250kW

    Calibration-only Stage 1 for the M133. In-house ECU tune (boost, ignition, torque, throttle) plus TCU tuning for improved shift speed, clutch pressure and launch control. No hardware required; retains OEM protections. Tuned on 98 RON.

  2. Stage 2Performance Package

    Strong gains across the range

    FittedCADE RACE downpipe · CADE cold-air intake · NGK spark plugs

    Custom in-house ECU + TCU tune plus CADE RACE downpipe, CADE cold-air intake and NGK plugs. Crisper throttle, firmer shifts and a strong power/torque increase across the range while retaining drivability. Mobile OBD flashing available.

    IntakeStock intake · CADE cold-air intake · High-flow BMC filters · CADE carbon intake

    Add-onsMobile OBD flashing

  3. Stage 3G25-660 Turbo Package

    310-340kW @ wheels (health-dependent)

    FittedG25-660 upgraded turbocharger · CADE RACE downpipe · CADE cold-air intake · NGK spark plugs

    All Stage 2 hardware (RACE downpipe, cold-air intake, NGK plugs) plus a G25-660 upgraded turbocharger and bespoke calibration. Targets 310-340kW at the wheels depending on engine health.

    IntakeStock intake · CADE cold-air intake · High-flow BMC filters · CADE carbon intake

Price the A45 / CLA45 privately →

A45 S / CLA45 S (W177 / C118, M139)

M139
  1. Stage 1ECU + TCU Calibration

    Software-only Stage 1 for the M139: custom in-house ECU + TCU calibration for the engine and 8G-DCT gearbox, developed on our Dynotech dyno over a day. No hardware required. Later M139 ECUs can need an unlock before they can be tuned; we check your car and confirm.

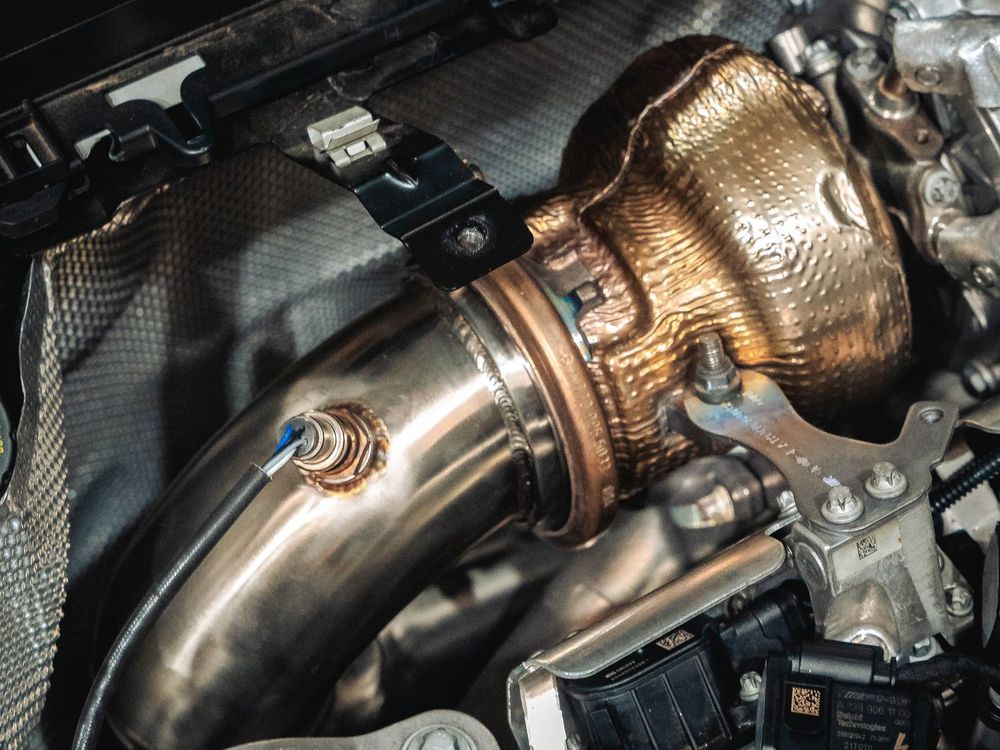

  2. Stage 2ECU + TCU + CADE RACE Downpipe

    FittedCADE RACE downpipe · NGK spark plugs

    Stage 2 for the M139: a CADE RACE downpipe and NGK spark plugs, supplied and fitted, with a CPC upgrade and full in-house ECU + TCU calibration on our Dynotech dyno. Includes dyno runs, a dyno sheet with your power figures and a post-tune health check.

    IntakeStock intake · High-flow BMC filters · CADE carbon intake

  3. Stage 3CADE Upgraded TurboBuilt to spec

    FittedCADE upgraded turbocharger, supplied and fitted · CPC module and coding · Final hardware specification confirmed with you

    Stage 3 for the M139: a CADE upgraded turbocharger, supplied and fitted, with a CPC module and coding and a Stage 3 calibration built around it. Our team prices the build to your car and specification.

    IntakeStock intake · High-flow BMC filters · CADE carbon intake

Price the A45 S / CLA45 S privately →

C63S pre-facelift (W205, M177)

M177 4.0TT
  1. Stage 1ECU + TCU (non-digital dash)

    +80kW / +150Nm

    For pre-facelift W205 cars with the non-digital dash. In-house ECU calibration (98 RON) plus 7-speed AMG MCT TCU tuning for sharper shifts, better clutch/torque handling and reduced turbo lag. Every calibration tailored on our dyno — no off-the-shelf files. Retains full drivability and safety systems.

    Add-onsCADE carbon fibre air intake

  2. Stage 2Performance Package

    +100kW / +200Nm

    FittedCADE RACE stainless downpipes · NGK performance spark plugs, heat-rated for higher cylinder pressure

    Complete bolt-on solution with proprietary CADE hardware: CADE RACE stainless downpipes, NGK performance plugs, plus custom ECU + TCU calibration. Noticeably quicker spool, stronger midrange and improved transmission response while retaining OEM refinement.

    IntakeStock intake · High-flow BMC filters · CADE carbon intake

  3. Stage 3CADE850 Hybrid TurboBuilt to spec

    Up to ~450rwkW on E85

    FittedCADE850 hybrid turbochargers · High-flow turbine profiles and reinforced turbo internals · All turbo installation hardware and gaskets · CADE RACE downpipes, as in Stage 2 · NGK performance spark plugs, as in Stage 2

    All Stage 2 items plus CADE850 Hybrid Turbochargers (OEM-frame, larger billet compressors, high-flow turbine profiles, reinforced internals), install hardware and gaskets, and in-house dyno tuning (98 RON or E85). Targets ~450rwkW with OEM-level boost control.

    IntakeStock intake · High-flow BMC filters · CADE carbon intake

Price the C63S pre-facelift privately →

C63S / GLC63S facelift (CPC 19+, M177)

M177 4.0TT
  1. Stage 1Calibration Only

    Facelift M177 (CPC 19+) tuning. Calibration-only Stage 1, developed in-house on 98 RON, with CADE CPC calibration (included with every facelift package).

    Add-onsCADE carbon fibre air intake

  2. Stage 2Downpipes + Calibration

    FittedCADE RACE downpipes · Supporting hardware

    Adds CADE RACE downpipes and supporting hardware to the facelift M177, with in-house calibration developed on 98 RON and CADE CPC calibration (included with every facelift package).

    IntakeStock intake · High-flow BMC filters · CADE carbon intake

  3. Stage 2+E85 / Hardware

    FittedCADE RACE downpipes, as in Stage 2 · Stage 2 supporting hardware · Further E85 / hardware upgrades

    Pushes further than Stage 2 on E85 and hardware, with in-house calibration developed on 98 RON unless E85 is specified, and CADE CPC calibration (included with every facelift package).

    IntakeStock intake · High-flow BMC filters · CADE carbon intake

Price the C63S / GLC63S facelift privately →

G63 / GLE63 S (W463A / V167, M177)

M177 4.0TT
  1. Stage 1Calibration Only

    Calibration-only Stage 1 for the M177 G63 (W463A) and GLE63 S (V167): custom in-house ECU + TCU calibration, developed on 98 RON.

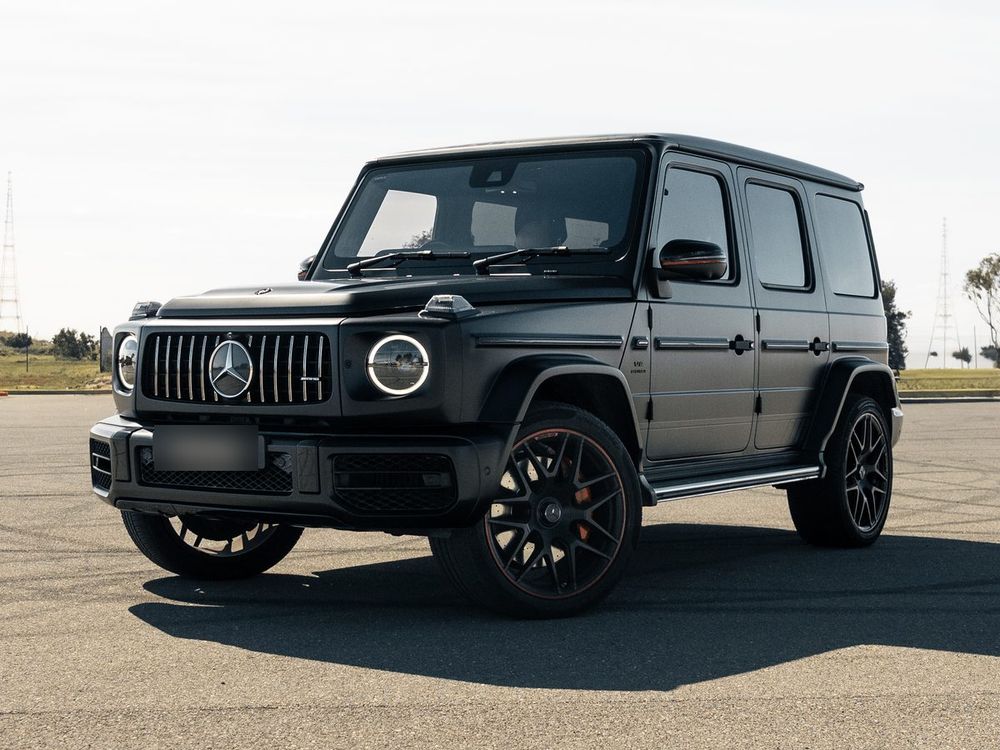

  2. Stage 2Downpipes + Calibration

    +100kW @ wheels

    FittedCADE RACE downpipes

    Stage 2 for the M177 G63 and GLE63 S: CADE RACE downpipes with custom in-house ECU + TCU calibration on 98 RON, and full control of the exhaust valves (quiet in Comfort, loud in Sport and Race).

    IntakeStock intake · High-flow BMC filters · CADE carbon intake

  3. Stage 2+E85 / Hardware

    FittedCADE RACE downpipes, as in Stage 2 · Further E85 / hardware upgrades

    Pushes further than Stage 2 on E85 and hardware, with in-house calibration developed on 98 RON unless E85 is specified.

    IntakeStock intake · High-flow BMC filters · CADE carbon intake

Price the G63 / GLE63 S privately →

C43 (W205, M276)

M276 3.0TT V6
  1. Stage 1ECU + TCU

    Sharper throttle, stronger midrange, crisper shifts

    Calibration-only Stage 1 for the M276 twin-turbo V6. Custom in-house ECU tune (boost, ignition, torque, throttle) plus TCU calibration for improved shift speed, clutch pressure and shift timing. No hardware required; retains OEM protections and full daily drivability. Tuned on 98 RON.

  2. Stage 2Performance Package

    Bigger top-end gains, sportier note

    FittedCADE RACE stainless downpipes · NGK performance spark plugs, correctly heat-rated

    Complete package with proprietary CADE hardware: CADE RACE stainless downpipes and NGK performance plugs (correctly heat-rated), plus custom ECU + TCU calibration recalibrated to suit the added hardware. Full health check included. Tuned on 98 RON.

    IntakeStock intake · High-flow BMC filters · CADE carbon intake

Price the C43 privately →

E63S / G63 / GLE63 (M157 5.5TT)

M157 / 5.5TT
  1. Stage 1Custom calibrationBuilt to spec

    In-house ECU + TCU calibration and staged hardware for the 5.5 biturbo platform. Specified and priced to your car.

  2. Stage 2Hardware + calibrationBuilt to spec

    FittedHardware specified to your car and goals

    IntakeStock intake · High-flow BMC filters · CADE carbon intake

  3. Stage 3Hardware + calibrationBuilt to spec

    FittedHardware specified to your car and goals

    IntakeStock intake · High-flow BMC filters · CADE carbon intake

Price the E63S / G63 / GLE63 privately →

CLS63 S (M157)

M157
  1. Stage 2ECU + TCU + Supporting Hardware

    +60-80kW / +150-200Nm

    FittedCADE M157 downpipes

    Stage 2 custom in-house ECU + TCU tuning with CADE M157 downpipes. Strong midrange and top-end gains. Crackles included; intake available as an option. Final price depends on specification.

    IntakeStock intake · High-flow BMC filters · CADE carbon intake · Blackboost M157 intake

  2. Stage 3Bespoke BuildBuilt to spec

    FittedHybrid turbos (e.g. CADE1000 hybrid turbochargers with Garrett cores) · High-pressure fuel system upgrades · Supporting modifications (cooling, custom vent lines)

    Bespoke Stage 3 build: hybrid turbos, high-pressure fuel system upgrades, supporting cooling and vent-line modifications, and a custom Stage 3 ECU + TCU calibration. Specified and priced to your car.

    IntakeStock intake · High-flow BMC filters · CADE carbon intake

Price the CLS63 S privately →

C63 / C63 S (W204, M156)

M156 6.2 V8
  1. Stage 1ECU + TCU CalibrationPriced on application

    +10-15%

    Custom in-house ECU + TCU calibration for the naturally aspirated M156 6.2 V8 in the W204 C63 and C63 S, on factory hardware, with a health check, dyno runs and a dyno sheet. Our team prices it to your car.

  2. Stage 2CADE Long-Tube Headers + ECU / TCUPriced on application

    Up to +40kW at the wheels

    FittedCADE long-tube headers · Upgraded spark plugs

    Stage 2 for the M156: CADE long-tube headers and upgraded spark plugs, with custom ECU + TCU calibration matched to the headers, for up to 40kW more at the wheels. Our team prices the package to your car.

    IntakeStock intake · High-flow BMC filters

Price the C63 / C63 S privately →

E63 / E63 S (W213, M177)

M177 4.0TT
  1. Stage 2CADE RACE Downpipes + ECU / TCU / CPCPriced on application

    +80-100kW at the wheels / +120-140Nm

    FittedCADE RACE downpipes

    Stage 2 for the M177 4.0 twin-turbo V8 in the W213 E63 and E63 S: CADE RACE downpipes with custom in-house ECU, TCU and CPC calibration. Our team prices the package to your car.

    IntakeStock intake · High-flow BMC filters · CADE carbon intake

  2. Stage 2+Downpipes, Intakes, Plugs + ECU / TCU / CPCPriced on application

    FittedCADE RACE downpipes · Upgraded intakes · NGK upgraded spark plugs

    Builds on Stage 2 with upgraded intakes and NGK upgraded spark plugs alongside the CADE RACE downpipes, with custom ECU, TCU and CPC calibration. Our team prices the package to your car.

    IntakeStock intake · Upgraded intakes · High-flow BMC filters · CADE carbon intake

Price the E63 / E63 S privately →

AMG GT / GT S / GT R (C190, M178)

M178 4.0TT
  1. Stage 1ECU + TCU + CPC CalibrationPriced on application

    Calibration-only Stage 1 for the M178 4.0 twin-turbo V8 in the AMG GT, GT S and GT R (C190): custom in-house ECU, TCU and CPC calibration on factory hardware, with a health check on the dyno. Our team prices it to your car.

  2. Stage 2CADE RACE Downpipes + ECU / TCU / CPCPriced on application

    FittedCADE RACE downpipes

    Stage 2 for the M178: CADE RACE downpipes with custom in-house ECU, TCU and CPC calibration matched to the freer-flowing exhaust. Our team prices the package to your car.

    IntakeStock intake · High-flow BMC filters · CADE carbon intake

Price the AMG GT / GT S / GT R privately →

QUOTED PER CAR

These AMGs are on our tuning invoices but have no fixed package yet, so we quote them for your car.

43 and 53 modelsM276 facelift · M256
A35 / CLA35M260
A250 / CLA250Stage 2: downpipe with ECU and DCT calibration
C200 to C300 · E400Stage 1 and Stage 2 calibration

BUILT IN-HOUSE

C63S RACE DOWNPIPES

Stainless downpipes for the W205 C63S, designed and developed in-house.

GLC63S HIGH-FLOW DOWNPIPES

200-cell catted downpipes for the GLC63S, in stainless steel.

CARBON FIBRE INTAKE

A direct OEM replacement for the C63S and GLC63S, offered as an add-on to the M177 packages.

W204 C63 TITANIUM EXHAUST

A complete titanium system for the W204 C63, hand-crafted in Adelaide.

CADE hardware carries a lifetime warranty while the car is serviced and health-checked by us every year; otherwise the standard warranty applies.

FROM BASELINE TO VALIDATION

01

CONSULT

We confirm the package, fuel and hardware for your car before booking it in.

02

BASELINE

A health check and baseline run on our Dynotech AWD dyno, with the original software backed up.

03

BUILD & CALIBRATE

Parts fitted in-house, then the calibration is developed on the dyno with live data from your car.

04

VALIDATE

Final dyno runs and a road test before the car goes home.

AMG TUNING FAQ

Which AMG engines do you have packages for?

The M133 and M139 four-cylinders, the M276 V6 in the C43, the M177 V8 in the C63S, GLC63S, W213 E63 S, G63 and GLE63 S, the M178 in the AMG GT, the M157 5.5 biturbo and the naturally aspirated M156 in the W204 C63.

What does Stage 2 add on a pre-facelift C63S?

CADE RACE stainless downpipes and NGK performance spark plugs with the ECU + TCU calibration, for +100kW / +200Nm.

Are the AMG calibrations developed on 98 RON?

Most Stage 1 and Stage 2 calibrations are; the C63S CADE850 Stage 3 is tuned on 98 RON or E85, and the facelift M177 Stage 2+ adds E85 and hardware.

Do I need to tell my insurer about a tune?

Yes: tell your insurer about the calibration and the parts fitted.

KEEP IT HEALTHY

Minor services, C63 prices and the A45 wastegate bush repair are on our Mercedes-Benz & AMG service page.

PLAN YOUR MERCEDES BUILD

Get your private price in the package builder, or book a consult at the workshop.
